扭矩电动扳手的操作流程有哪些?

来源:https://www.xjnwz.com 日期:2021-02-01 发布人:admin

一、 电源的连接
1、 Connection of power supply
先将主机的三芯插头插入控制仪相应的插座上?然后将控制仪上的电源线接入电网。绿/黄双色芯线为接地线。
First insert the three core plug of the host into the corresponding socket of the controller, and then connect the power line of the controller to the power grid. The green / yellow core wire is the grounding wire.
工作结束后?以相反方向拆卸。
At the end of the work? Remove in the opposite direction.
二、螺栓的扭紧操作
2、 Tightening operation of bolts
1、 装上反力支架?并紧固螺钉。开动主机?使方头销孔与反力支架孔相对应?然后装入扳手套筒?插上销钉?并用橡胶圈固定。
1. Install reaction support? And tighten screws. Start the main engine? Make the square pin hole correspond to the hole of reaction support? Then install the wrench socket? Insert the pin? And fix it with rubber ring.
2、 将控制仪的扭矩旋扭调到所需扭矩值?将主机正反开关拨到正转位置?把扳手套筒套在螺纹连接件的六方上。
2. Adjust the torque of the controller to the required value? Turn the forward and reverse switch of the main engine to the forward position? Put the wrench socket on the hexagon of the threaded connector.
3、 按下电源开关?扳手启动。当反力支架力臂靠牢支点时(支点可以是邻近的一只螺栓或其他可做支点的位置)螺栓开始拧紧。当螺栓扭矩达到预定扭矩时?扳手自动停止?紧固完成?放开电源开关?进行下一只螺栓的紧固工作。
3. Press the power switch? Wrench to start. When the arm of the reaction support is close to the fulcrum (the fulcrum can be an adjacent bolt or other position that can be used as fulcrum), the bolt starts to tighten. When the bolt torque reaches the predetermined torque, the wrench will stop automatically, the tightening is completed, the power switch is released and the next bolt is tightened.
4、 扳手自动停止后?靠反力支架的弹性形变力?使支架力臂自动脱离支点?取下扳手。如力臂不能脱离支点时?可拨动正反开关?点动电源开关?扳手即可取下。

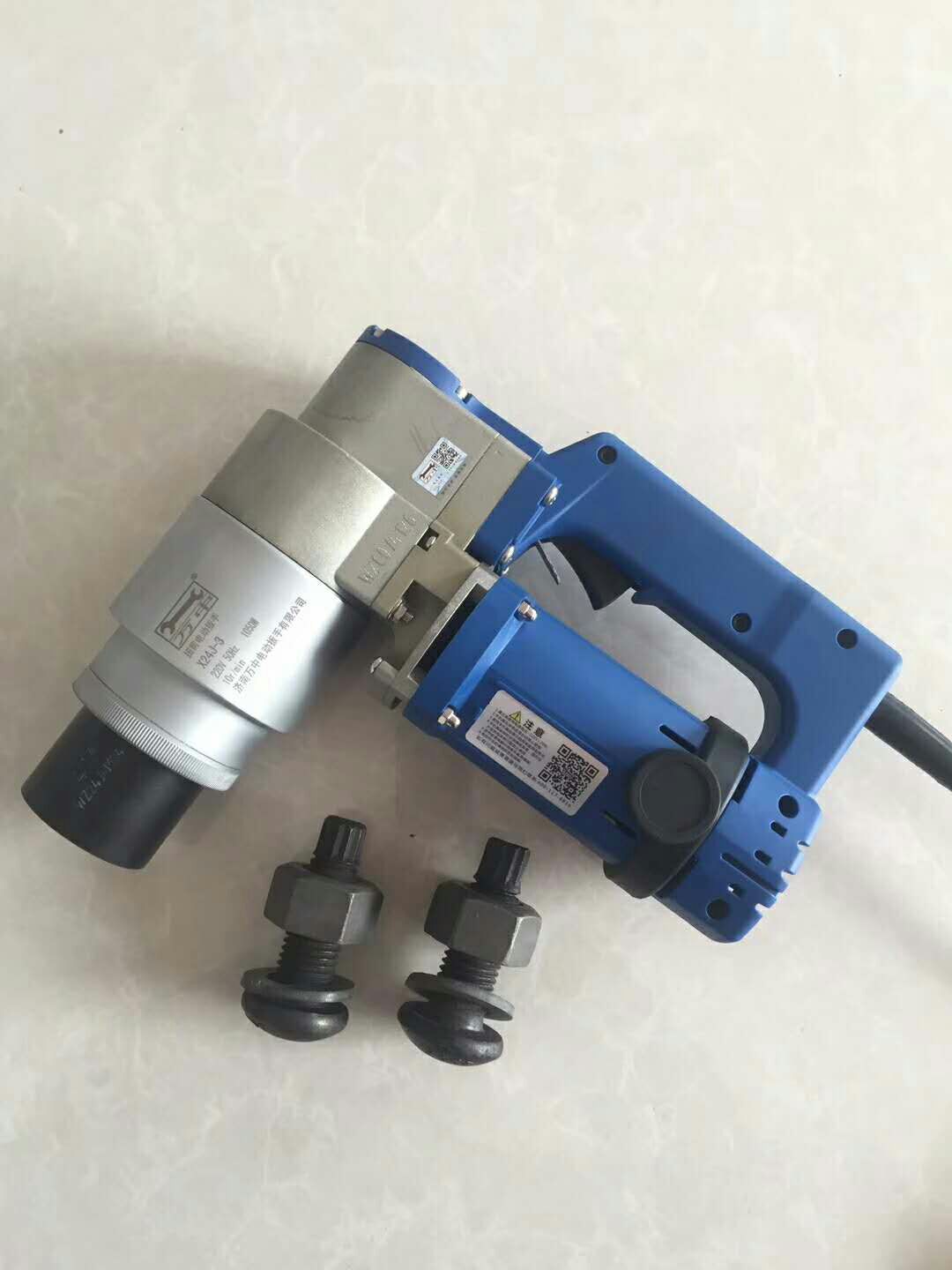

扭剪扳手
4. After the wrench stops automatically, the force arm of the support is automatically separated from the fulcrum by the elastic deformation force of the reaction support, and the wrench is removed. If the force arm can not be separated from the fulcrum, it can be removed by turning the positive and negative switch, inching the power switch and wrench.
三、 螺栓的拆卸操作
3、 Removal of bolts
扳手在拆卸螺栓(反转)时?其操作方法与拧紧操作相同?只是将正反开关拨到反转位置?螺栓卸松后防开电源开关。
When the wrench is removing the bolt (reversing), its operation method is the same as tightening operation, but the positive and negative switch is turned to the reverse position, and the power switch is prevented from opening after the bolt is removed.
四、 扭矩的选择与调节
4、 Selection and adjustment of torque
1、 用户可在100---12500Nm的范围内任意选择相应规格的电动扳手。
1. The user can choose the electric wrench of corresponding specifications in the range of 100-12500nm.
2、 控制仪面板上电控部分采用智能芯片控制,液晶显示值?可以输入精确的数字用以调节扭矩,设定值精确到个位数。
2. The electronic control part of the controller panel is controlled by an intelligent chip, the LCD display value? Can input accurate numbers to adjust the torque, and the set value can be accurate to single digits.
